BUILTBRIGHT
StrobeLink™ Kit Amber, (4) Strobes+(1) 15" Mini Bar
StrobeLink™ Kit Amber, (4) Strobes+(1) 15" Mini Bar
This kit includes the following components:

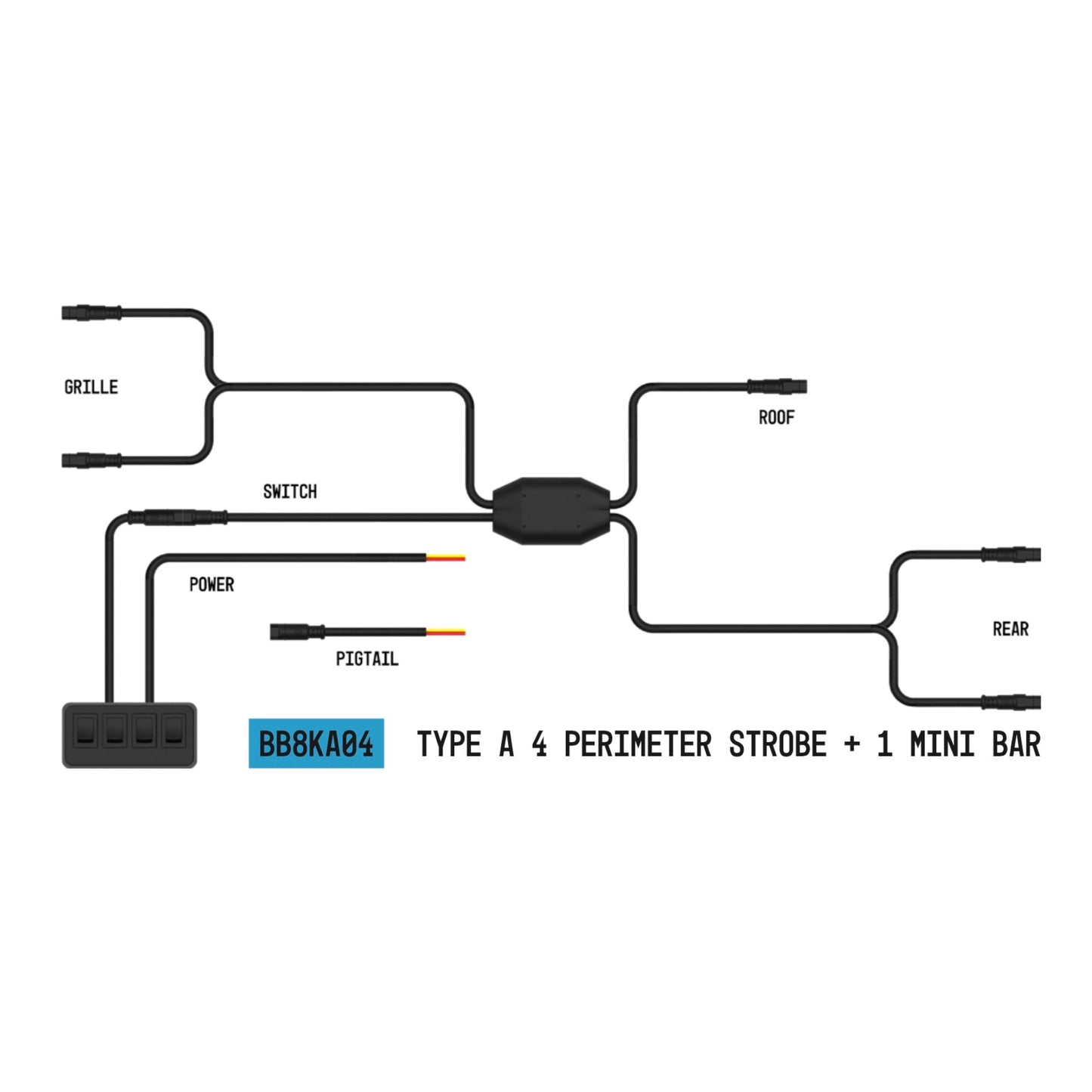

HARNESS: 1 x BB8KA04

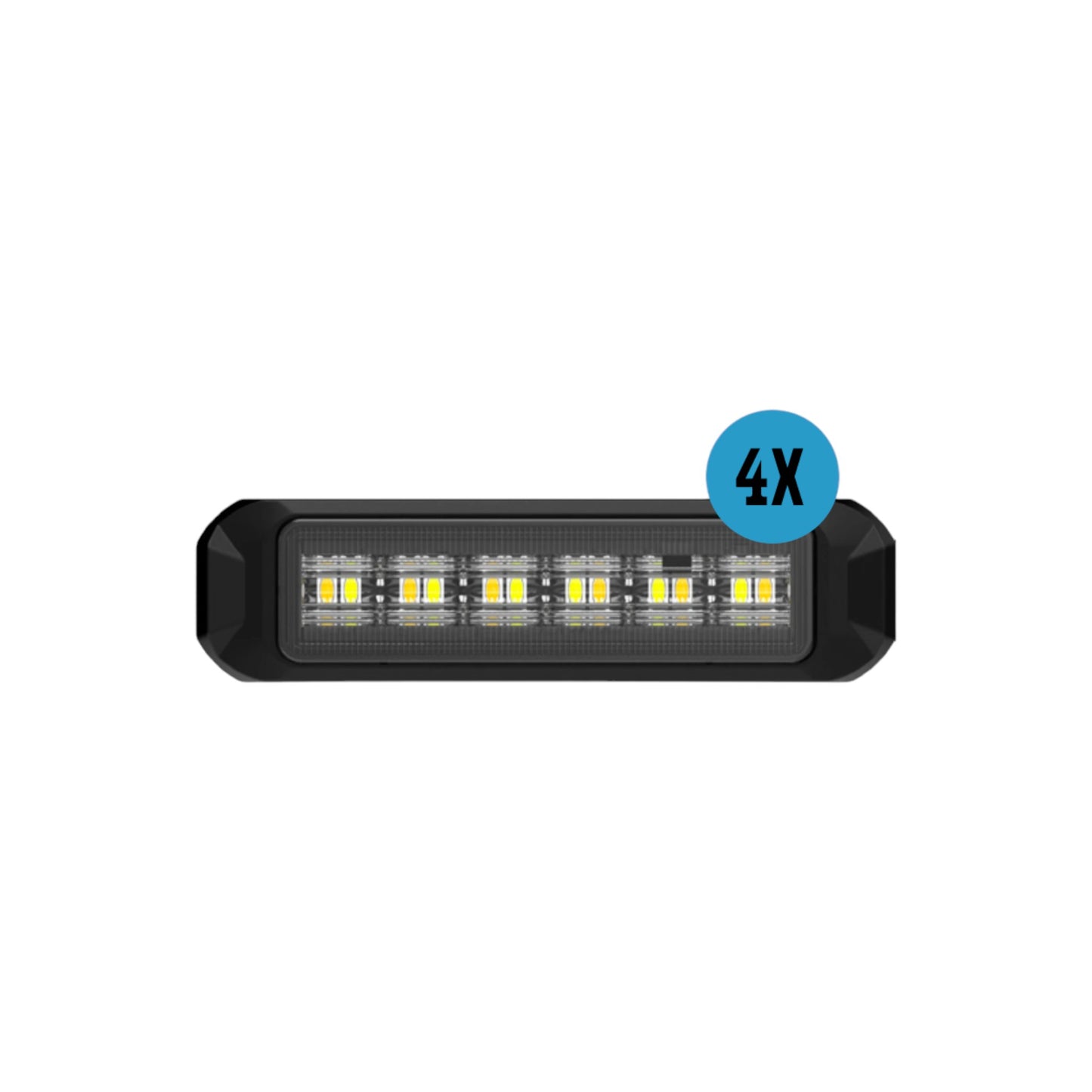

STROBES: 4 x BB6110A

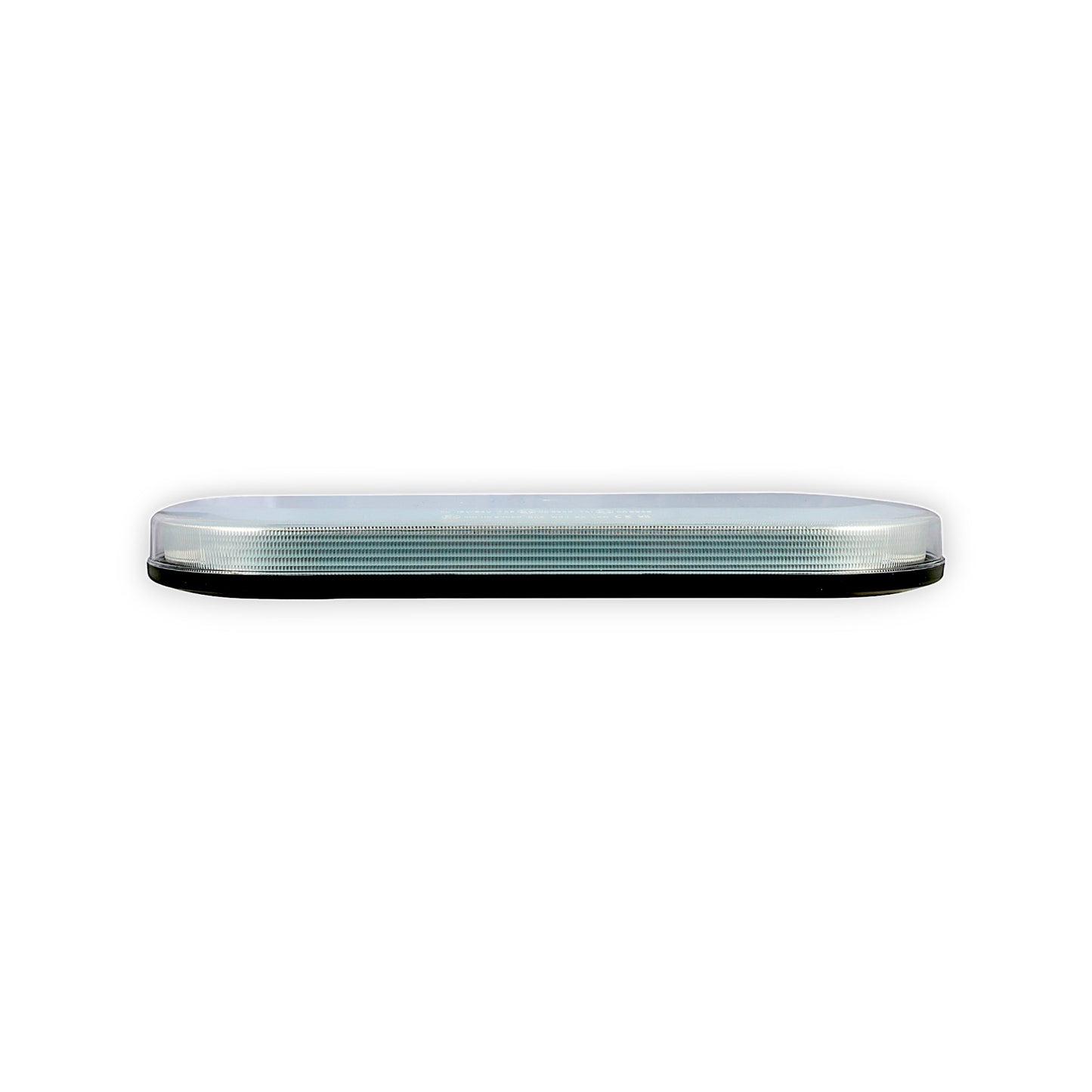

MINI BAR: 1x BB6011AK
StrobeLink™ is a patent-pending strobe light install kit that simplifies the installation of strobe lights on work trucks. No cutting or splicing, using this kit can potentially reduce labor costs by up to 75%. Easy replacement of damaged lights, minimizing downtime.
FEATURES
FEATURES
• Patent-pending harness streamlines strobe light installation on work trucks.
• Expandable system designed to fit any work truck with a bed length of less than 10 feet.
• Plug-and-play wiring system eliminates the need for cutting or splicing.
• The harness integrates four (4), six (6), or eight (8) perimeter strobes and a mini bar.
• High-temperature-resistant wiring ensures durability in diverse working conditions.
• Weather-tight connectors provide protection against leakage and corrosion.
• Flexibility to control the strobes using provided switches or upfitter switches.
• Extensions available for longer vehicles and customized builds.
SPECIFICATIONS
SPECIFICATIONS
• Five (5) Core or three (3) Core Cable with Black Sheath
• Five (5) Pin or three (3) Pin Plugs
• PVC Insulation to UL2517 standard
• Tinned Copper Strands
• Max Amp: 15A
• Operating Voltage: 12 V DC
• Wire Colors: Black, Red, White, Grey, Yellow
• Rated Temperature: 105℃ / 221℉
• UL VW-1 & CUL FT1 vertical flame test verified
• ROHS Compliant Oxygen Lead Free
• Rated Weatherproof IP69K
• Five (5) Year No Hassle Warranty
INCLUDED
INCLUDED
• HARNESS: 1 x BB8KA04
• STROBES: 4 x BB6110A
• MINI BAR: 1 x BB6011AK
