BB8KA06
StrobeLink® Harness - Type A for 6 Lights + Mini Bar (1 EA)
StrobeLink® Harness - Type A for 6 Lights + Mini Bar (1 EA)

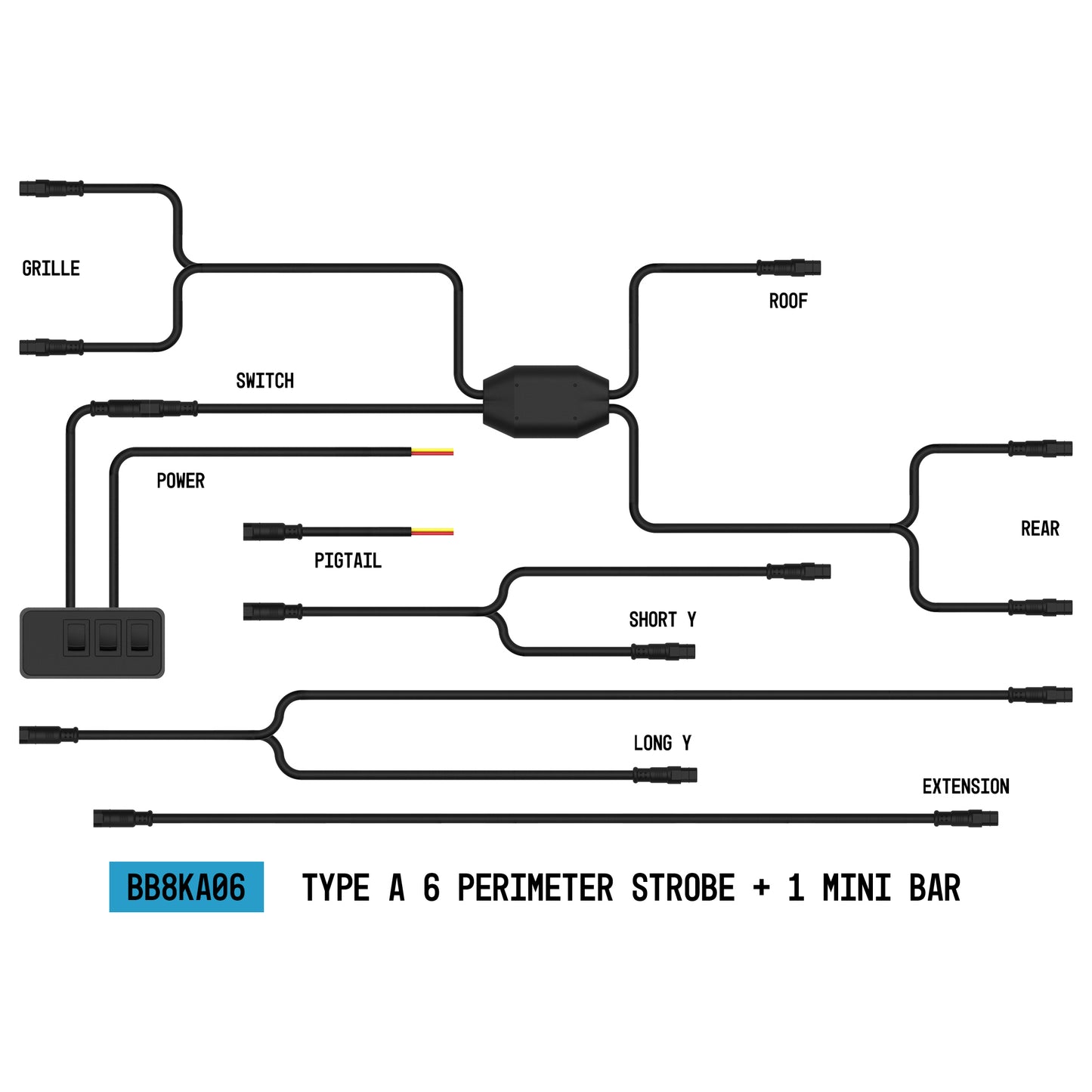

This StrobeLink® Harness Type A allows for the plug-and-play installation of up to six perimeter strobe lights and one mini bar. No cutting, splicing, or prefabrication required. With the patented StrobeLink® design, simply route the harness underneath the vehicle, plug in your lights, connect to power, program your patterns, and you’re ready to go. The plug-and-play connections mean that expansions, extensions, and replacements are incredibly easy.
FEATURES
FEATURES
• StrobeLink® Foundation - Enables compatible BUILTBRIGHT® lights, brackets, and accessories to be upfitted
• Plug-and-Play Installation - Supports up to four perimeter strobe lights and one mini bar
• No Cutting or Splicing Required - Pre-configured design simplifies vehicle upfitting
• Expandable Platform - Plug-and-play connections make expansions, extensions, and replacements simple
• Premium OFC Wiring - Oxygen-free copper conductors ensure reliable power delivery
• PVC-Sheathed Cables - Durable harness construction built for demanding environments
• IP69K Weather-Resistant Connections - Designed to withstand harsh weather and jobsite conditions
• Secure Connector Retainers - Helps keep every connection firmly locked in place
• UL, cUL, and RoHS Compliant - Engineered to meet strict safety and quality standard
SPECIFICATIONS
SPECIFICATIONS
• Cable: 5-Core and 4-Core PVC-Sheathed Cable
• Connectors: 5-Pin and 4-Pin Connectors
• Wire: Stranded Tinned OFC (Oxygen-Free Copper)
• Compliance: RoHS, UL2517
• Max. Current: 15A
• Voltage: 12V DC
• Wire Colors: Black, Red, White, Gray, Yellow
• Rated Temperature: 105°C / 221°F
• Flame Rating: UL VW-1 and cUL FT1 (Vertical Flame Test)
• Weatherproof Rating: IP69K
• Warranty: 5-Year Warranty
INCLUDED
INCLUDED
• 1x StrobeLink® Harness
• 1x Switch Panel
• 6x Connector Caps
• 11x Connector Retainers
