BB8KB06
StrobeLink™ Harness Type B, 6 Perimeter Strobes
StrobeLink™ Harness Type B, 6 Perimeter Strobes

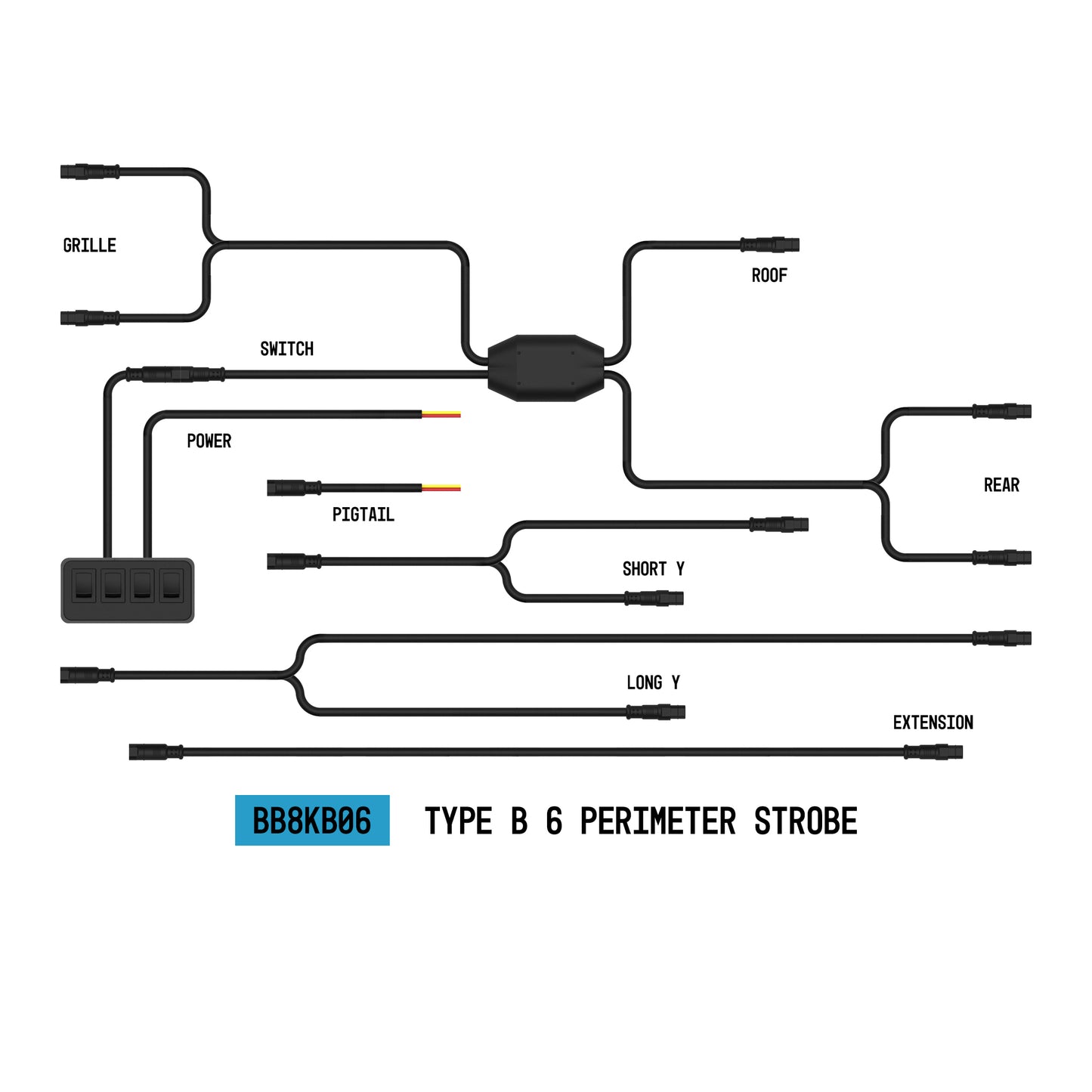

StrobeLink™ Main Harness Type B 6 Lights is a wiring harness designed to allow installers to add six (6) perimeter strobes into any truck. StrobeLink™ is a patent-pending strobe light install kit that simplifies the installation of strobe lights on work trucks. No cutting or splicing, using this kit can potentially reduce labor costs by up to 75%. Easy replacement of damaged lights, minimizing downtime.
FEATURES
FEATURES
• Patent pending harness streamlines strobe light installation on work trucks.
• Expandable system to fit any work truck with less than ten (10) feet long bed.
• Plug and play wiring system eliminates the need for cutting or splicing.
• The harness adds four (4), six (6), eight (8) or ten (10) perimeter strobes.
• High temperature resistant wiring ensures durability in diverse working conditions.
• Weather tight connectors provide protection against leakage and corrosion.
• Flexibility to control the strobes using provided switches or upfitter switches.
• Extension available for longer vehicles and customized build.
SPECIFICATIONS
SPECIFICATIONS
• Five (5) Core Cable Black Sheath
• Five (5) Pin Plugs
• PVC Insulation to UL2517.
• Tinned Copper Strands
• Max Amp: 15A
• Operating Voltage: 12 VDC
• Wire Colors: Black, Red, White, Grey, Yellow
• Rated Temperature 105℃ / 221℉
• UL VW-1 & CUL FT1 vertical flame test verified.
• ROHS Compliant Oxygen Lead Free
• Rated Weatherproof IP69K
• Five (5) Year No Hassle Warranty.
INCLUDED
INCLUDED
• 1x Harness
• 1x Swith Panel
• 4 x Connector Caps
