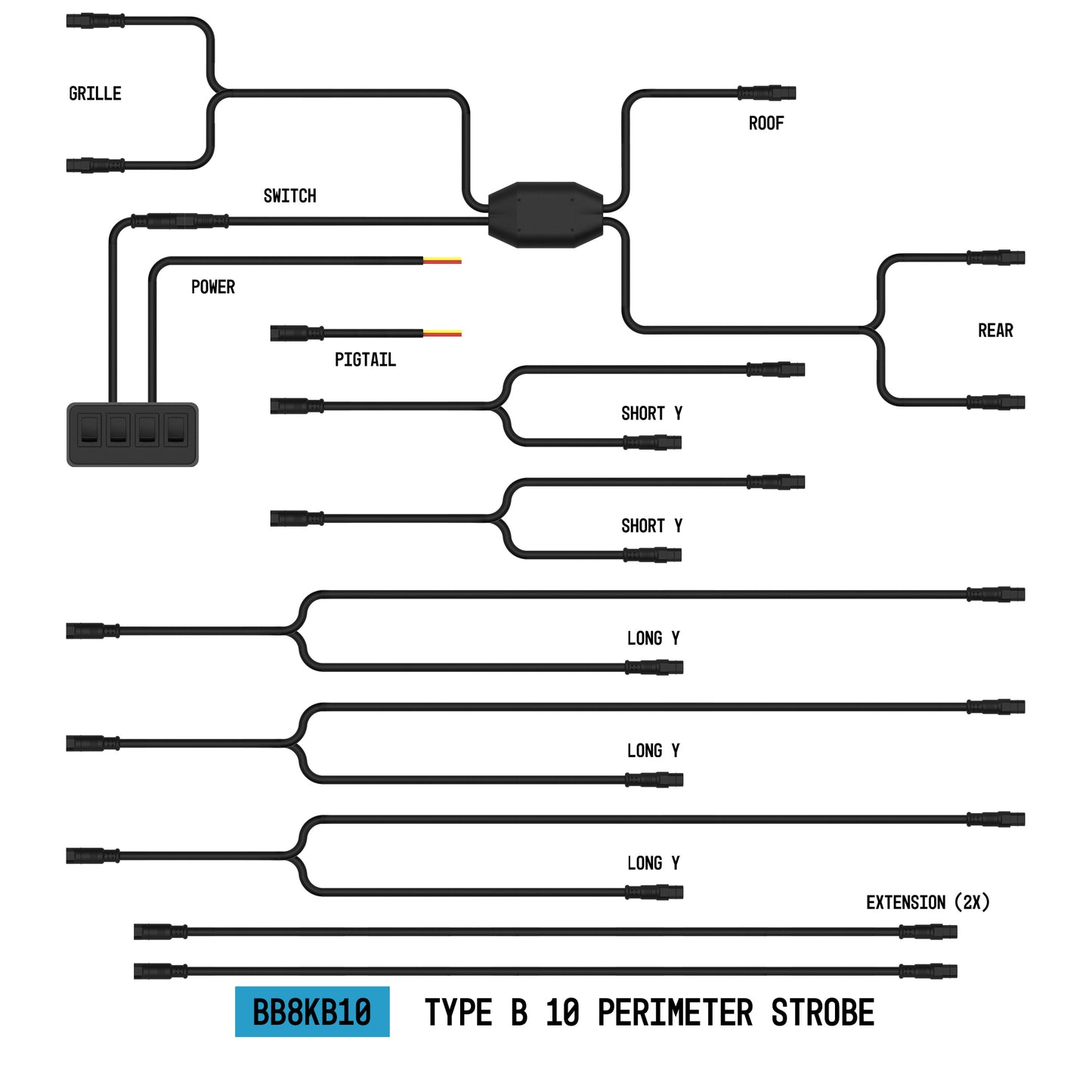

Harness Type B, 10 Perimeter Strobes
Harness Type B, 10 Perimeter Strobes
StrobeLink™ Harness Type B 8 Lights is a wiring harness designed to allow installers to add (8) perimeter strobes to any truck. StrobeLink™ is the all-in-one strobe light kit that offers an unprecedented blend of customization and installation efficiency. With our new patent-pending design, forget about cutting, splicing, and prefabrication. Choose your lighting setup, select your wiring harness, scoop up grille and roof brackets and you’ll have a vehicle that commands attention in no time. Because StrobeLink™ is engineered around plug and play connections, system expansions, extensions, and replacements are incredibly easy. All light mounts with premium stainless steel brackets are optimized for your particular vehicle.
FEATURES
FEATURES
• High temperature resistant wiring ensures durability in diverse working conditions.
• Weather tight connectors provide protection against leakage and corrosion.
• Flexibility to control the strobes using provided switches or upfitter switches.
• Extension available for longer vehicles and customized build.
SPECIFICATIONS
SPECIFICATIONS
• Five (5) Core or three (3) Core Cable Black Sheath
• Five (5) Pin or three (3) Pin Plugs
• PVC Insulation to UL2517.
• Tinned Copper Strands
• Max Amp: 15A
• Operating Voltage: 12 V DC
• Wire Colors: Black, Red, White, Grey, Yellow
• Rated Temperature 105℃ / 221℉
• UL VW-1 & CUL FT1 vertical flame test verified.
• ROHS Compliant Oxygen Lead Free
• Rated Weatherproof IP69K
• Five (5) Year No Hassle Warranty.
INCLUDED
INCLUDED
• 1x Harness
• 1x Swith Panel
• 4 x Connector Caps
