BB6011D
Work Bar Strobe 15 - Amber/Green (All In One Package)
Work Bar Strobe 15 - Amber/Green (All In One Package)
BUILTBRIGHT® Work Bar Strobe 15 is designed to incorporate a compact sleek design with the ultimate light output to meet the SAE CLASS I standard. This product also boasts major industry requirements such as IP69K, EMC R10 approvals and comes as standard with seventy eight (78) flash patterns including flood, strobe, split and full flood pattern. It features ultra bright latest generation LEDs under an all new, wide diffused lens with dual color options.
The Work Bar Strobe 15 is available in a variety of mount options whether you require a permanent or temporary magnetic mount. It also comes with a cigarette plug switch and hard wire pigtail and switch panel, making it the one stop solution for emergency services, amber safety and commercial vehicles. The Work Bar Strobe 15 is designed tough enough for a fit-and-forget-it purpose and has a five (5) year warranty.
FEATURES
FEATURES
• Meets SAE J845 CLASS 1, California Title 13, EMC R10 Requirements
• 12 and 24 VDC compatible
• Sleek modern low profile design with 360° diffused lens
• 360° strobe in green, amber and dual color
• Seventy Eight (78) selectable flash patterns
• Integrated cruise and flood mode
• Integrated steady burn and strobe split mode
• Comes with dash mount switch and plug with on/off switch and flash pattern toggle
• Quick disconnect waterproof connectors allows for easy switching between temporary and permanent switch.

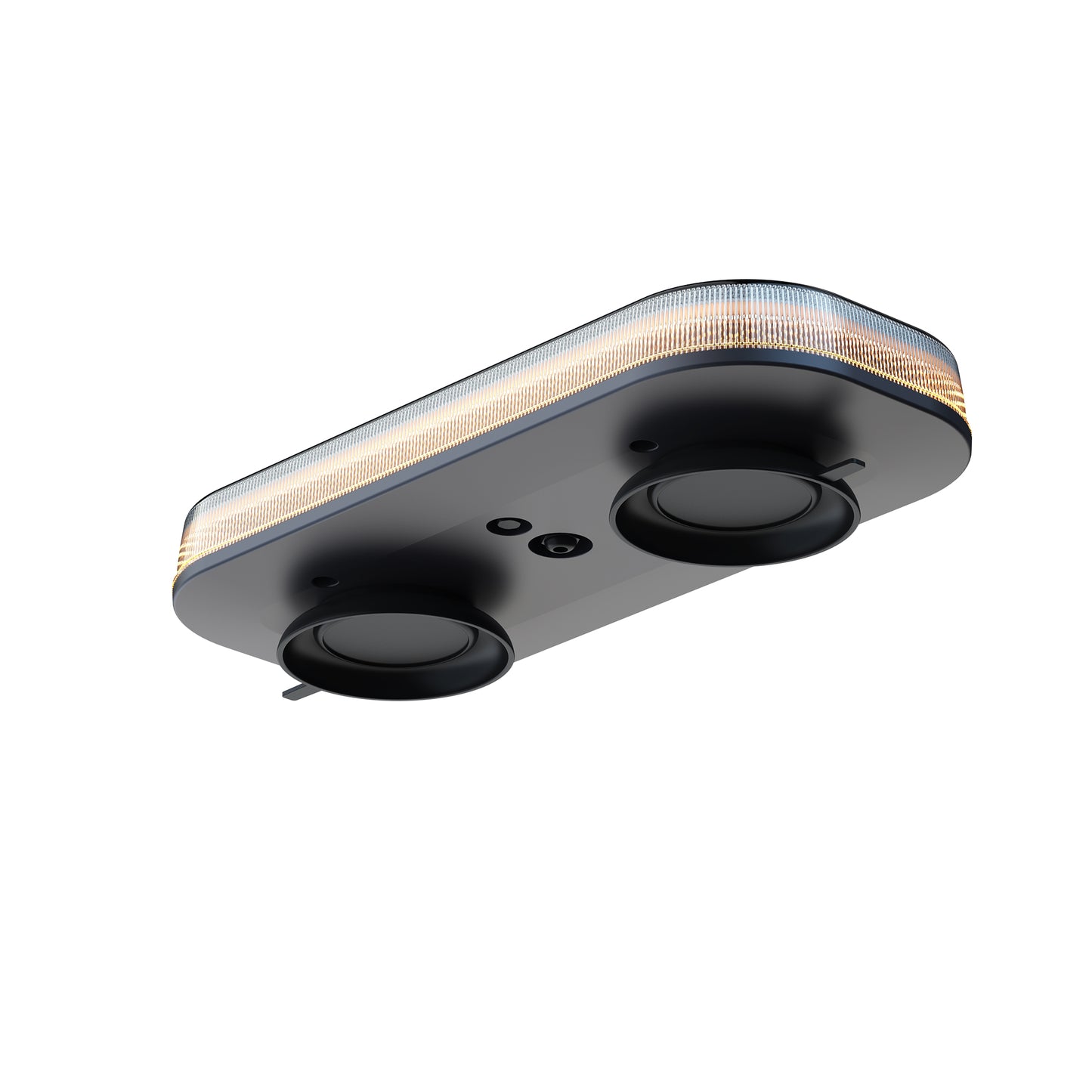

• Rugged magnetic feet and permanent stud mount included
• Weatherproof IP69K rated
• Five (5) year warranty
SPECIFICATIONS
SPECIFICATIONS
• Compliance: SAE J845 CLASS 1, California Title 13 and R10 requirements
• LED Count: 144 pcs
• Patterns: 78 Flash Patterns
• Voltage: 10~30 V DC
• Avg. Current: 5.5A @12V DC (varies with flash pattern)
• Avg. Power: 70 W (varies with flash pattern)
• Max. Current: 6A @12V DC
• Max. Power: 76 W
• Wires Length Light Bar to connector: 13 Feet
• Wires Length Connector to cigarette plug: 5 Feet
• Recommended Fuse: 10 Amps
• Lens Color: Clear
• LED Color: Amber & Green
• Operating Temperature: -40°F to + 149°F
• IP Rating: IP69K

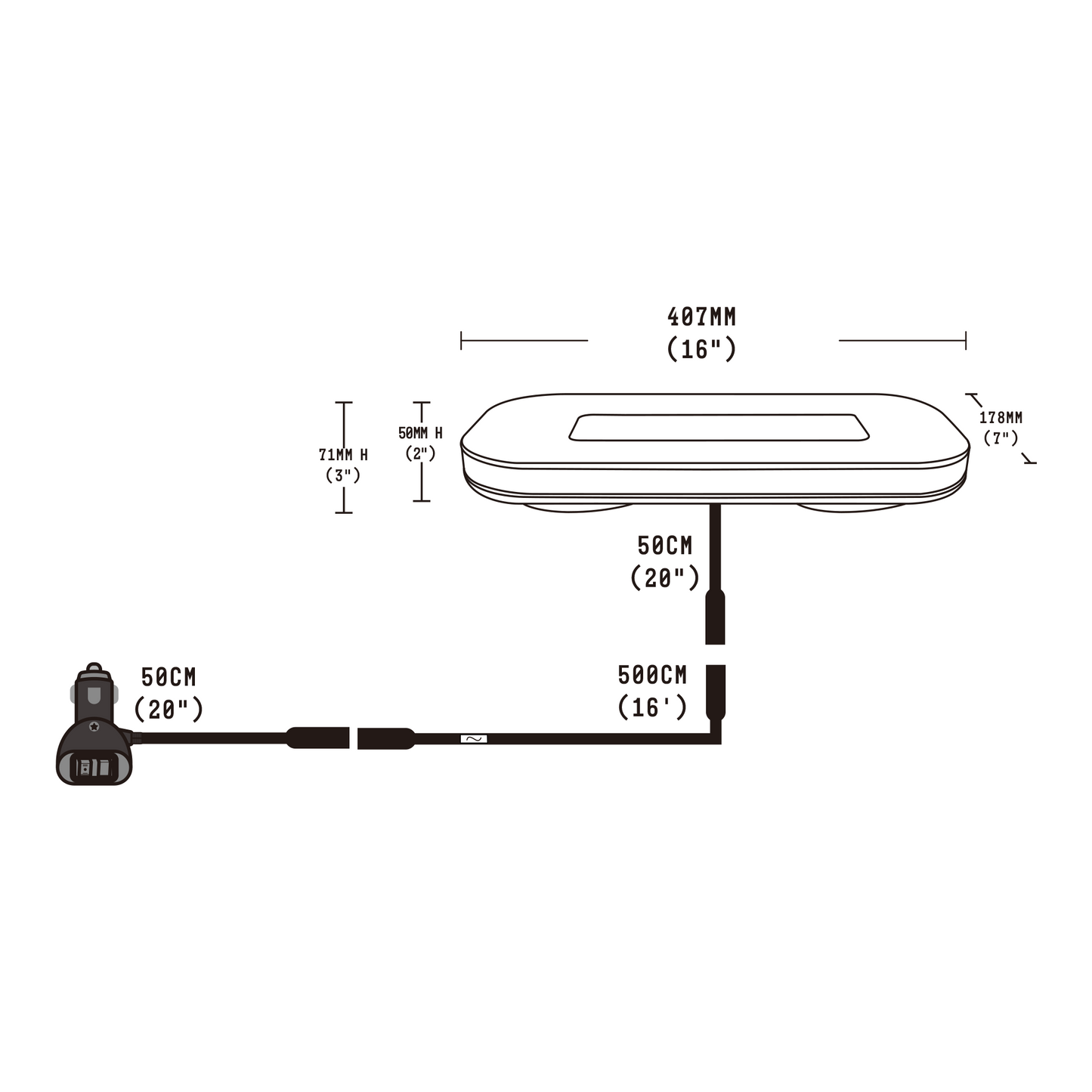

• Dim: 1.5” H x 7" W x 15" L
• Connector(s): Circular Waterproof Connector
• Material Type (Lens): Ultra strong UV stabilized polycarbonate lens
• Material Type (Body): Polycarbonate
• Material Type (Hardware): 304 Stainless Steel
• Warranty: 5 Year
INCLUDED
INCLUDED
• 1x LED Light Bar
• 2 x Vacuum Magnetic Mounts
• 2 x Bolt Mount Studs and Hardware Kit
• 1 x Bolt Mount Foam Gasket
• 1 x Hardwire Pigtail
• 1 x Cigarette Lighter Switch
• 1 x 16' Extension Wire








The emergency strobe LED light bar that commands attention.
-
Dual Color
-
42 Strobe Patterns
-
SAE J845 Class 1
-
5 Year Warranty
